O-ring for Dometic/Can glass window

Protective Grommet for Glass Window (Dometic/Can) – TPU, 3D Printed

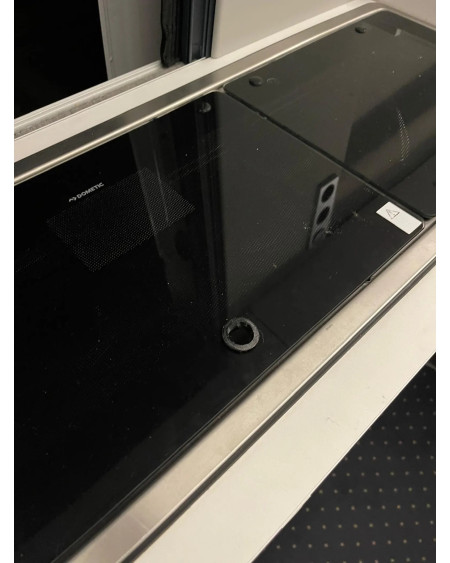

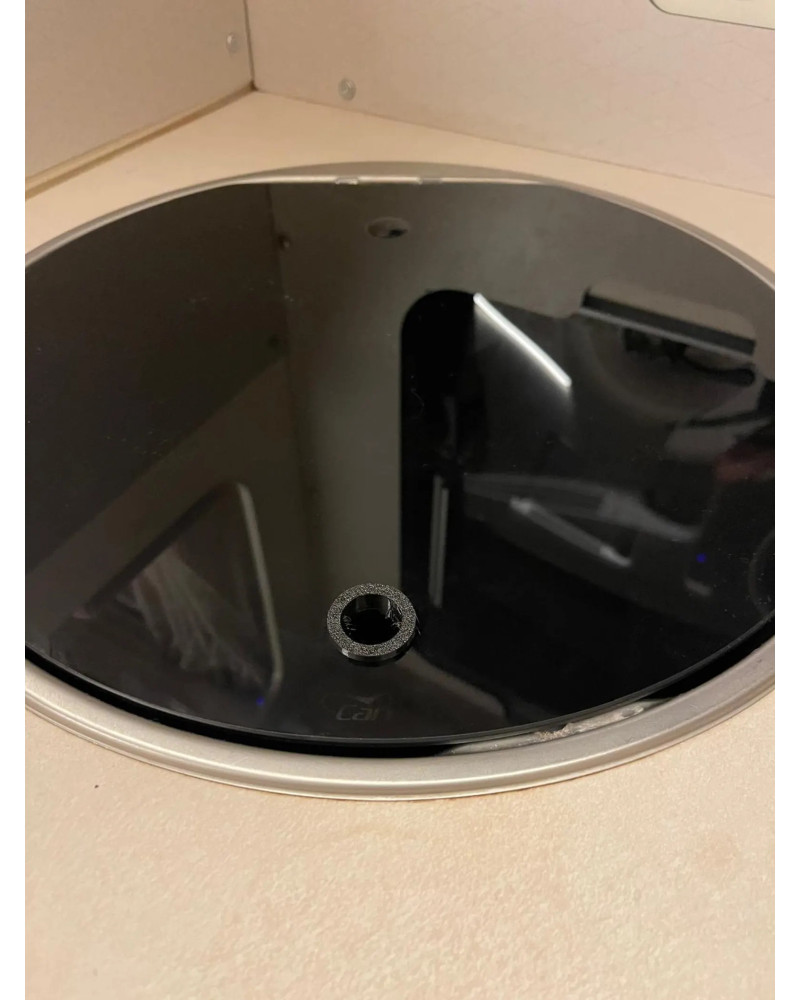

The grommet (O-ring with flange) is designed for installation in a glass window hole. Its purpose is to isolate the finger from the glass edge and eliminate the risk of cuts when lifting or closing the window. The part is manufactured using 3D printing technology from flexible TPU and is available in black or white.

Applications

Protects fingers from sharp glass edges

Provides a neat and soft finish to the window hole

Fits Dometic/Can solutions as well as other holes of matching dimensions

Advantages

Flexible, soft TPU material – pleasant to touch, cushions contact with glass

Flange covers the hole edge and improves grip

Durable 3D-printed design, repeatable production in two colors

Quick “press-fit” installation

Dimensions (according to drawing)

Outer diameter (flange): 27.3 mm

Inner diameter (grip hole): 19.2 mm

Total thickness (height): 10 mm

Mounting groove (wall recess): 2 mm (depth) × 4 mm (width)

Material

TPU (3D print) – flexible, abrasion-resistant

Installation

Clean and degrease the glass hole edges.

Insert the grommet evenly, pressing until the groove “clicks” onto the glass edge. Optionally soften the O-ring in warm water. Caution: risk of burns.

Check that the flange sits flush all around.

If necessary, reheat in warm water to increase flexibility (use caution to avoid burns).
